Fabrication

Tig Welding

Grace Pacifica Machining, LLC specializes in Tig (Tungsten Inert Gas) welding. Our certified welders are experienced in welding all types of steel, including many different grades of stainless steel. We also weld a variety of metals such as aluminum, Inconel, Hastelloy and Titanium.

We are equipped with an array of the latest welding technologies. Welding and fabrication can effectively help in resolving all your prototyping, low and high volume welding and fabrication needs. We have employed a team of skilled personnel who can assure quality welding, fabrication, and cutting services.

Tig welding uses a non-consumable tungsten electrode to create the weld. Filler materials, shielding gas and a constant power supply are used to bring out the best quality weld.

Welding services

  • Superior quality welds

  • Precise weld control

  • Low distortion

  • Free of spatter

  • Continuous welds

  • Total penetration, fusion and sealing

Mig Welding

We have eight Mig welders. We also have two 3 ton Cranes directly over our fabrication area to take on your most demanding complex projects.

Metals

  • Stainless Steel

  • Carbon Steel

  • Aluminum

  • Various Exotic Alloys

Our Market

  • Medical

  • Aerospace

  • Defense

  • Semiconductor

  • Mining

  • Commercial

A Few of our major Sheet Metal markets are Aerospace, Defense, Medical, and Semiconductor.

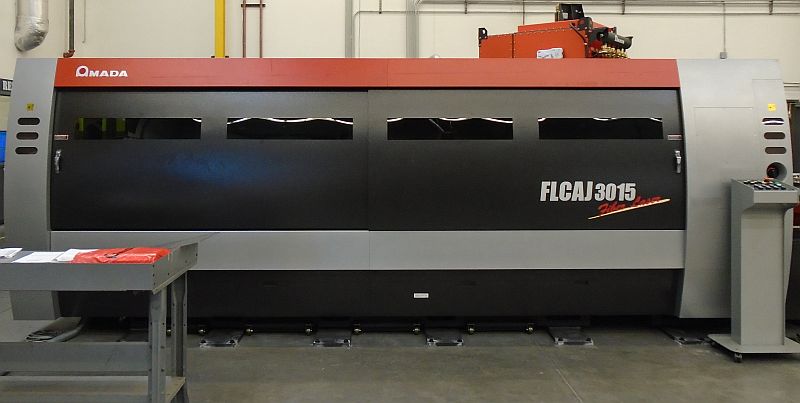

Amada FLCAJ 3015 Fiber Laser

Technical Data

Maximum cutting area:    120.86” x 61.02”
Axis travel cutting head:    128.74” x 61.02” x 3.93”
Maximum material thickness:    0.625” (2kW)
Maximum cutting speed:    4,724”/min.
Position accuracy:    +/- 0.0004”

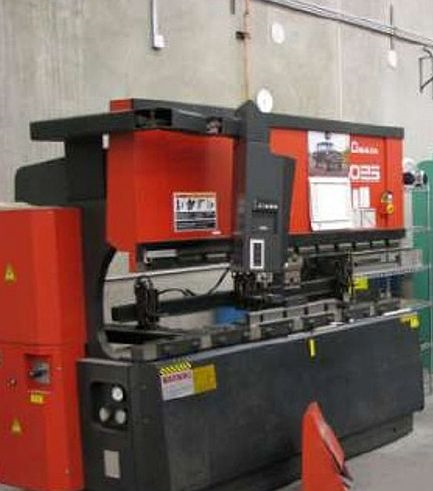

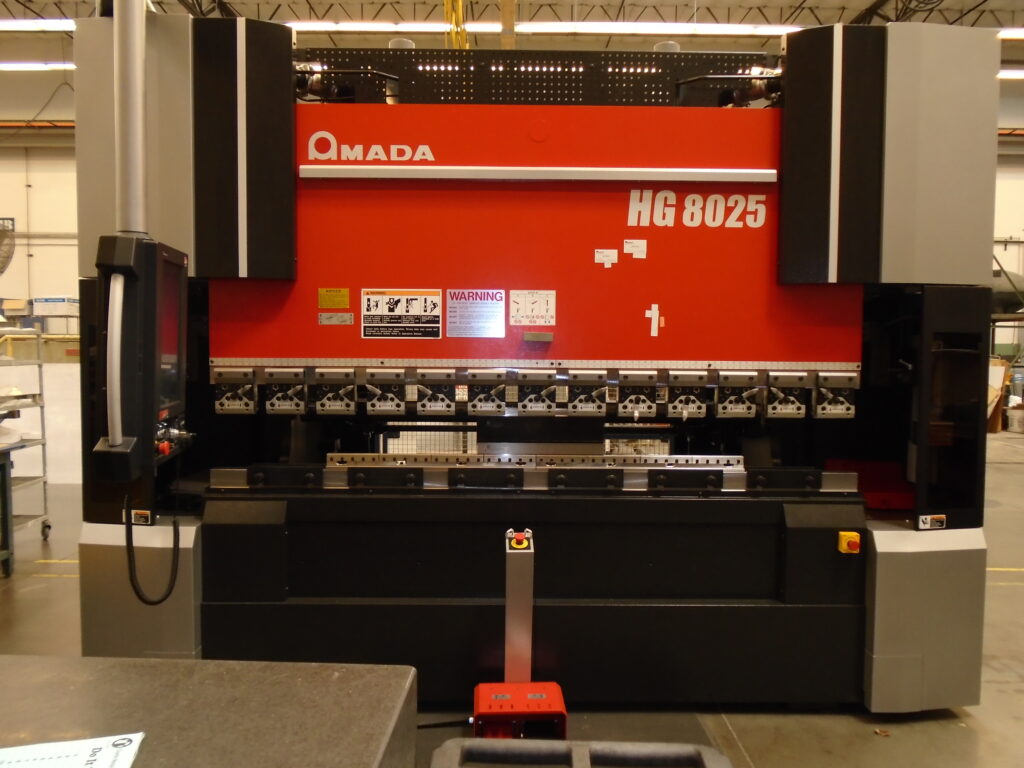

Press Brakes

We have two Amada CNC press brakes located in our fabrication department. We are currently running one shift in this department with plenty of room for growth.

One Amada can handle bends up to 55 tons. The other Amada press brake can handle a full range of applications in bend lengths up to 120 inches.

Our press brakes are set up for both English and European tooling.

Whether it’s a prototype or large free standing enclosure, we pride ourselves on superior custom fabricated products. Our team can work with your sketches, blueprints, or files and help you design the perfect fit for any application.
